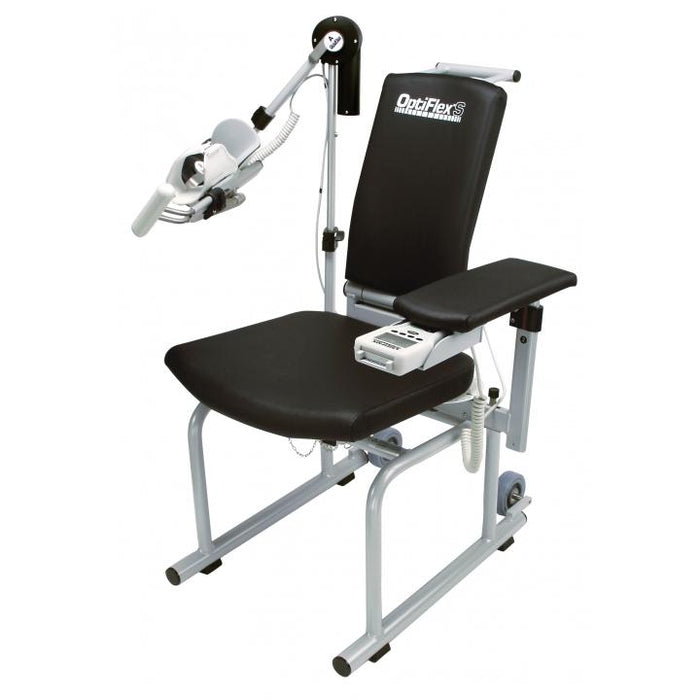

Chattanooga's OptiFlex S Shoulder CPM Machine is a state-of-the-art, motorized range-of-motion (ROM) therapy device designed for patients recovering from shoulder-related injuries. Its multi-motor system is fully synchronized and capable of providing patients with adduction/abduction, flexion/extension, and rotational exercises across a range of speeds, depending on each individual's particular circumstances. Also available is a warm-up option that instructs the OptiFlex S Shoulder CPM Machine to operate at 50 percent of the programmed ROM. Therapists and other caregivers will appreciate the convenience of the hi-tech Patient Data Chip Card (PDCC), which stores patient-related performance information over the course of treatment, as well as the OptiFlex's lightweight portable design featuring casters and a foldable frame.
Product Benefits:
- Lightweight, foldable, and portable
- Collects and stores patient treatment data
- Adjustable chair with ergonomic armrest for healthy arm
- Fully synchronized motors permit fine-tuning of particular ROM programs
- Offers numerous ROM exercises to help heal tendons, ligaments, and joints.
| SPECIFICATION | DESCRIPTION |
|---|---|
| Motor Control: | On/Off |
| Pause: | 0 - 30 seconds |
| Speed: | 0 - 100% |
| Timer: | 1 - 300 minutes |
| Warm-Up Mode: | 50% of programmed ROM |
| Synchronization: | On/Off |
| Reverse-On-Load: | 1 - 20 |
| Therapy Run Time: | h : m |
| Patient Data Storage: | n/a |
| Adduction/Abduction: | 0 - 30 - 175° |
| Internal/External Rotation: | 90 - 0 - 90° |
| Flexion/Extension: | 0 - 30 - 175° |
| Horizontal Adduction/Abduction: | 0 - 0 - 125° |
| Unit Weight: | 55 lb (25 kg) |
| Shipping Weight | 107 lb (48.5 kg) |
| Dimensions: | 34.4" x 22.6" x 22.8" (87.5 cm x 57.5 cm x 58 cm) |
| Transport Size: | 14.6" x 22.6" x 22.8" (37 cm x 57.5 cm x 58 cm) |
| Safety Tests: | CSA - 601-1-M90, UL - 2601-1 |
